2728 BB Drawer Runner Sgl 20kg 400mm HGSS

Hold-in feature holds the closed drawer inTested to 80,000 cycles

• Installation Length: 400 mm
• Extension length: 283 (3) mm
• Load bearing capacity: 20 kg
• Application: Ideal for environments where mild steel might be subject to corrosion

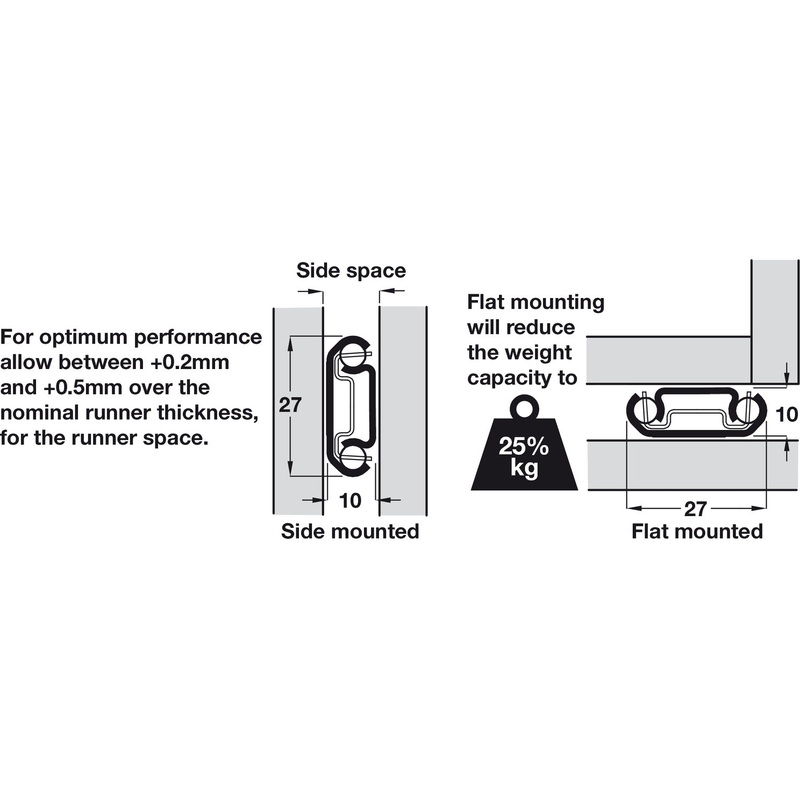

• Installation: Side or base mounted9.5 mm slide thickness
• Material: High grade stainless steel
• Note: Weight limit per pair based on length, weight limits reduce by 75% if flat mounted
• Order reference: Order Hospa 4.0 countersunk screws separatelyFixings: Max. head height 2.5 mm, 9.6 mm
